The Story

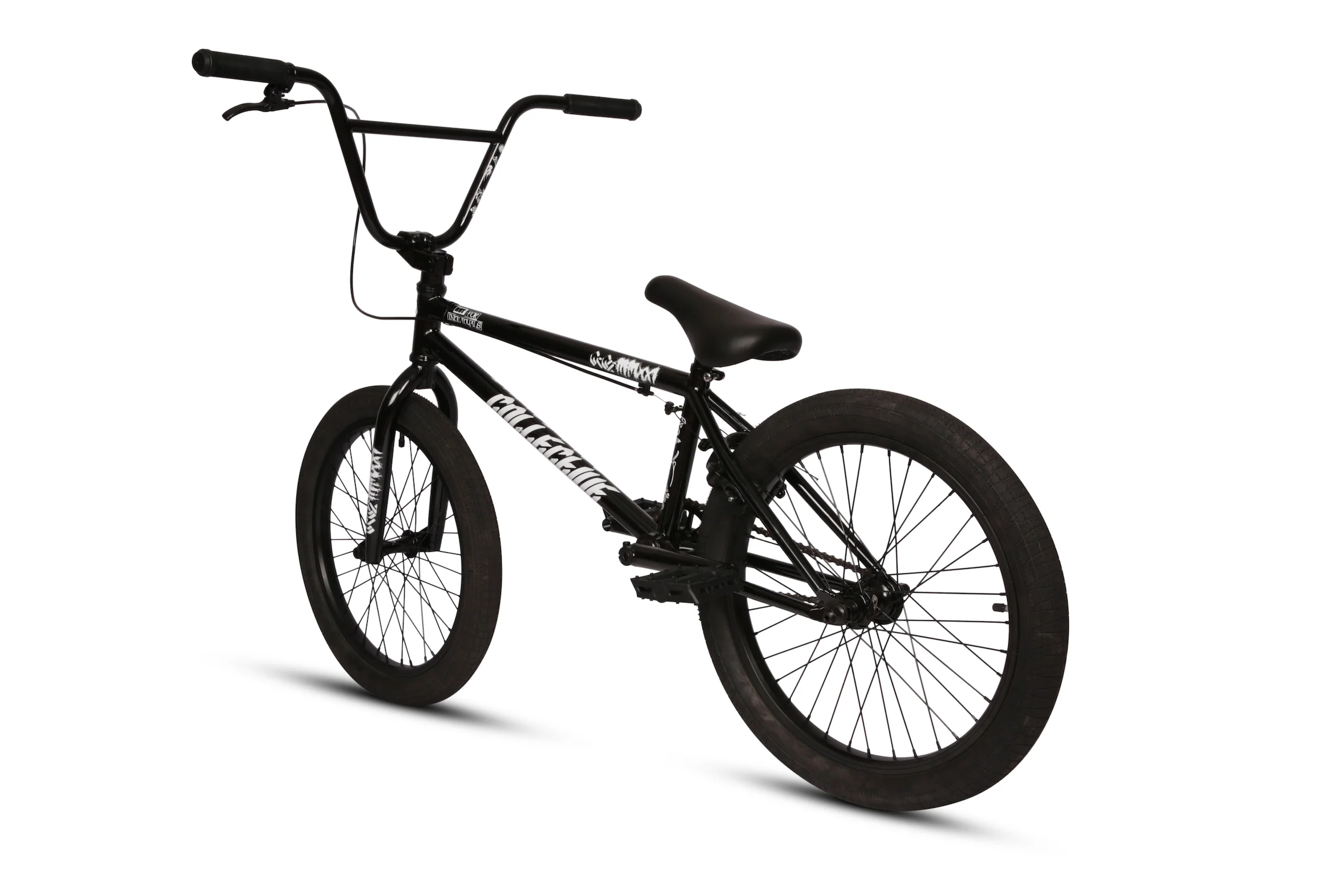

Our flagship 20'' BMX. Premium and extremely strong, easily competing with other professional complete BMXs worth over £800.
Available in both Cassette and Free Coaster!
SPECS:
FORK: FULL 4130 CRMO / 28MM OFFSET
FORK TOP CAP: FULL 4130 CRMO / 28MM OFFSET

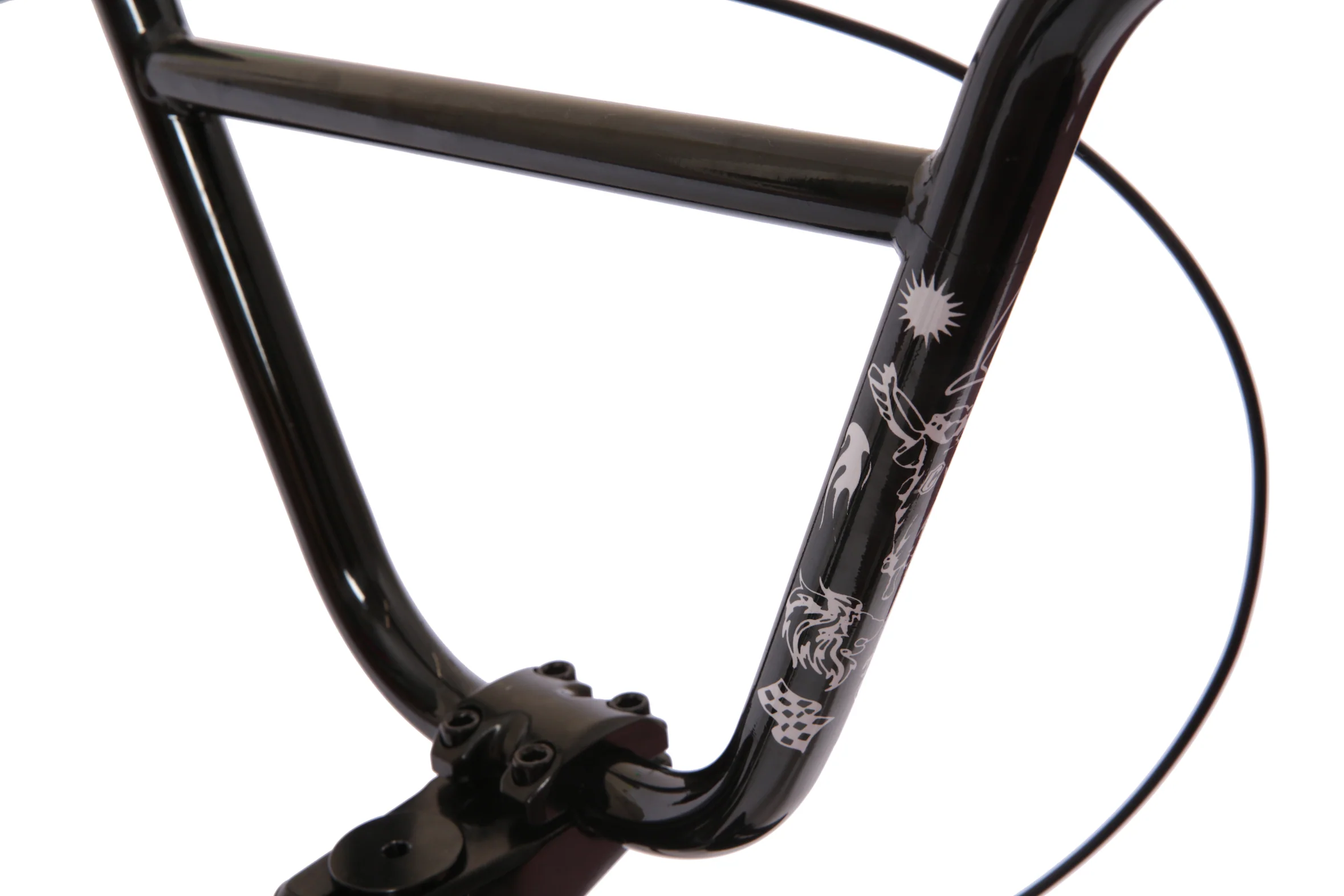

HANDLEBAR : FULL 4130 CRMO / 9.5"
STEM: ALLOY TOP LOAD STEM, FORGE BODY, FORGED CAP, 28.6mm. Barbore: 22.2mm, Height: 30mm.
BRAKE LEVER: REAR, ALLOY BRAKE LEVER/CLAMP 22.2mm
HEADSET: FOR 1-1/8" FORK STEERER, W/5MM SPACER
CRANKS: L175MM, 4130 CR-MO TUBULAR WELDED, 8T-19MM, 3PCS

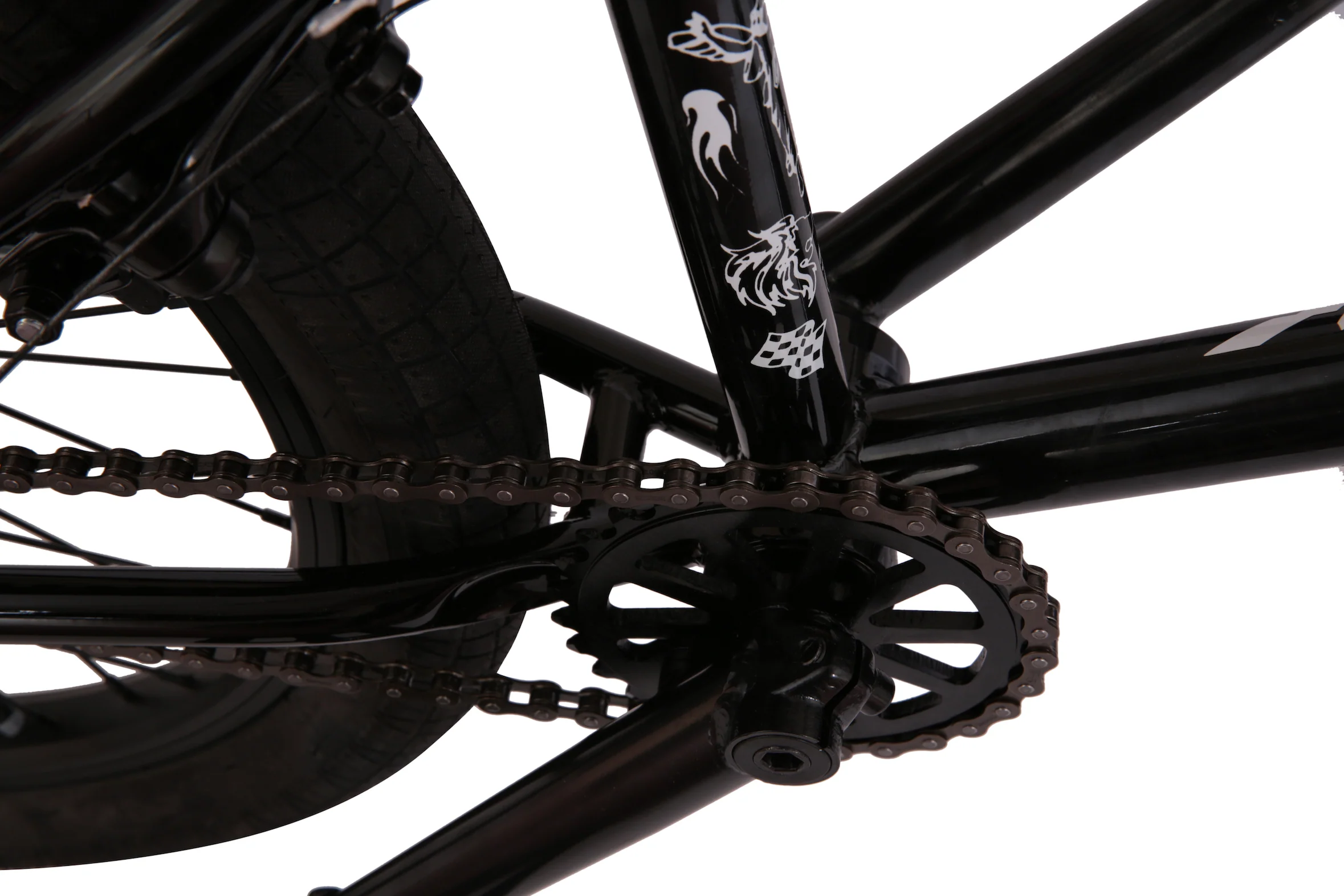

SPROCKET: 1/8"*25T*AL6061 Full CNC sprocket
CHAIN: 410 1/8x72L
PEDALS: 9/16" CR-MO AXLE, NYLON
FRONT HUB: SEALED CRMO, 14G*OLD100*36H, L160mm*3/8"

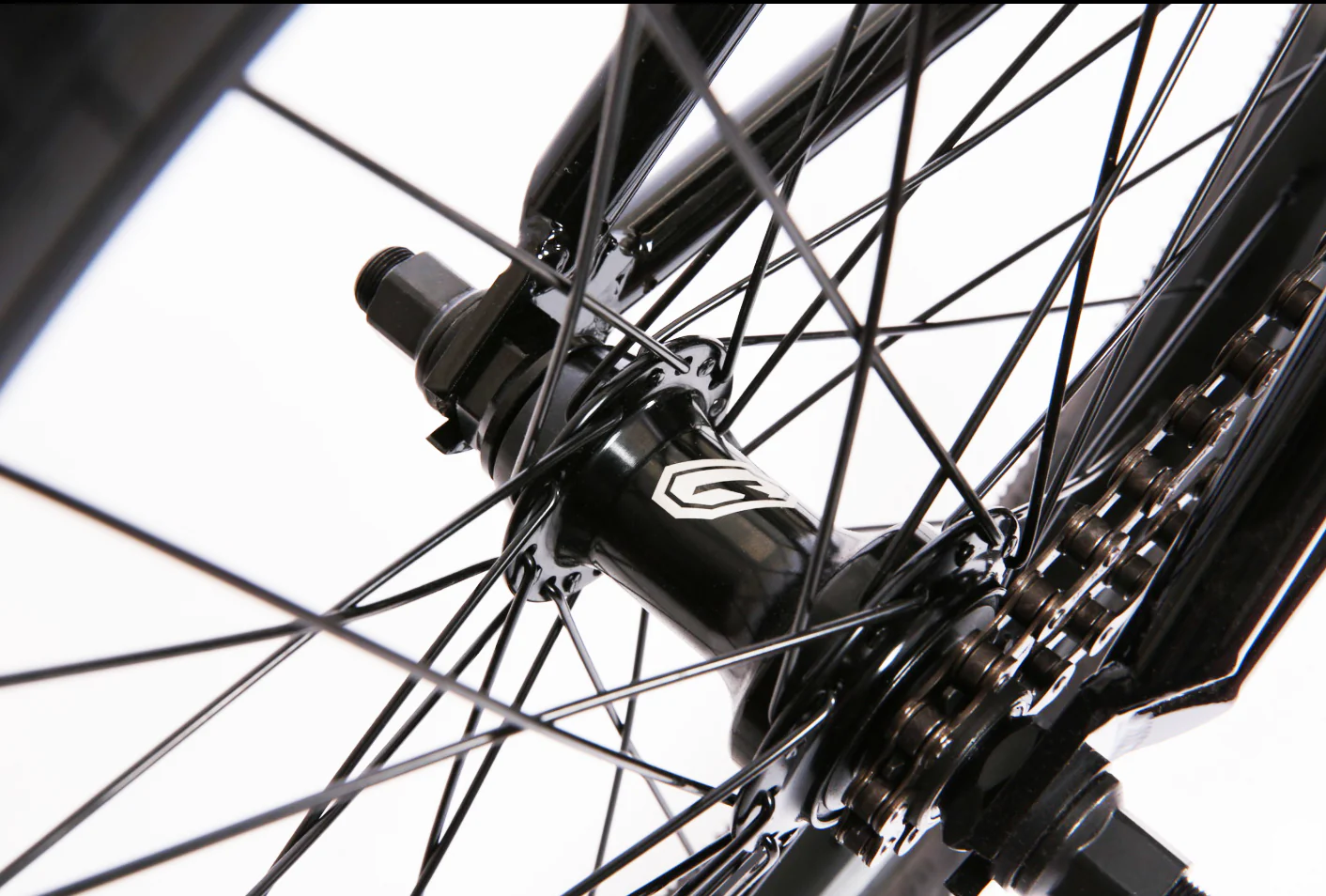

REAR HUB: SEALED 9T, RHD 1pc driver cassette hub
FRONT RIM: 20" 36H BLACK
REAR RIM: 20" 36H BLACK
SPOKES: 14G, W/16MM BRASS NIPPLE
TIRES: 20"*2.35"/ 60TPI
TUBES: 20"X2.2"-2.4", A/V, LOW LEAD
SEAT: Pivotal 3pcs seat
SEATPOST: PIVOTAL, 25.4mm
SEATCLAMP: ALLOY, 28.6MM.
GEOMETRIES:
A: Top Tube 21 (533.4mm)
B: Head Angle 75 Degrees
C: Seat Angle 71 Degrees
D: Seat Tube 9.00 (228.6mm)
E: Chainstay 12.99 (330mm)
